MAP Sensor Conversion

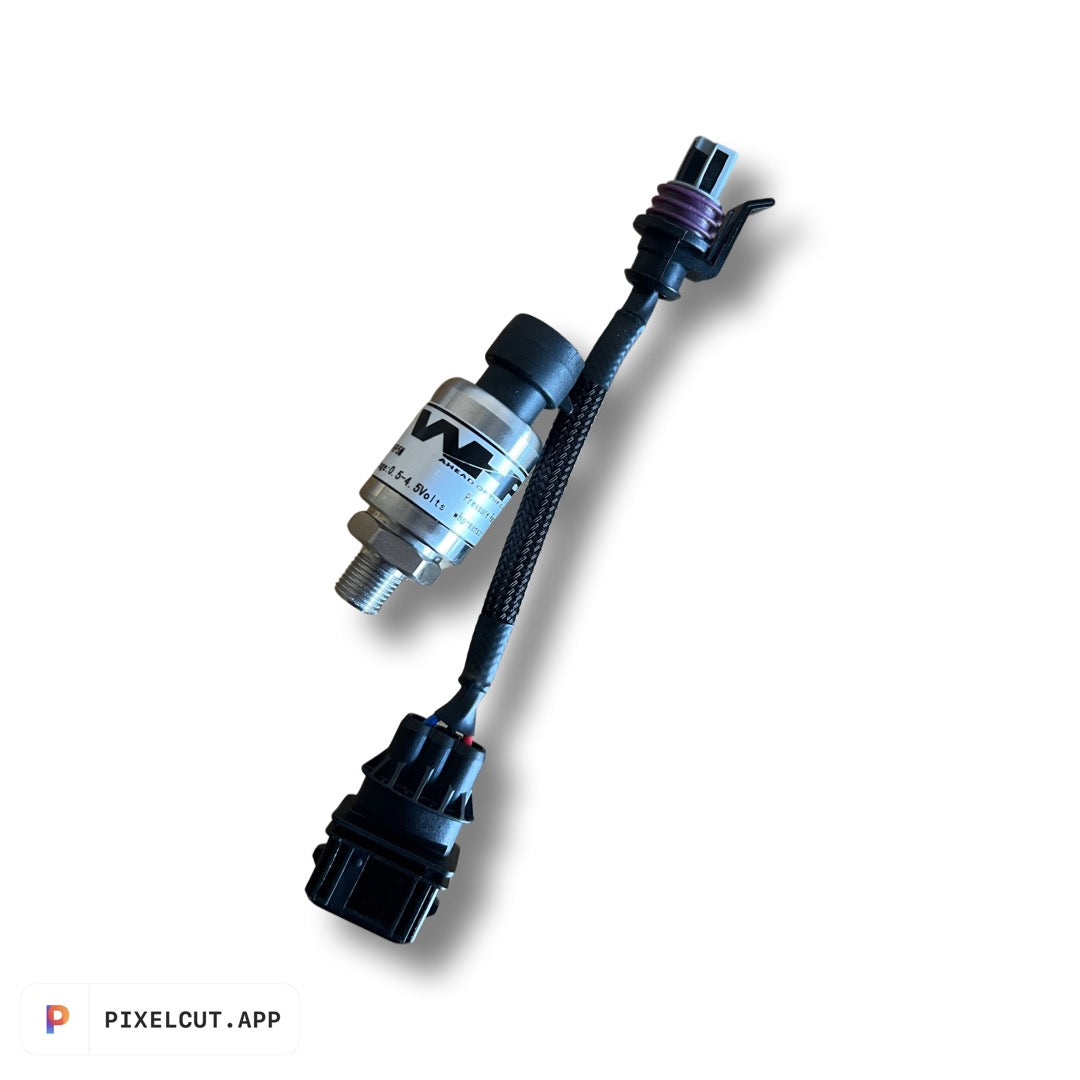

These conversions will allow you to use an AEM style of MAP sensor in a complete plug and play way with a 6" jumper harness. These come as kits and include your choice of WHP or LDM MAP sensor. Map options are from 1-7 BAR and are a full stainless steel sensor. We strongly recommend getting the smallest sensor possible for your application to maintain resolution in the tuning process.

How to figure out what sensor you need:

4 BAR=58.8 psia, atmospheric pressure at sea level=14.7psia

58.8-14.7=44.1 psig

A 4 BAR sensor will read up to 44 psi of boost.

***WHP sensor only available in 3.5, 4, 5, 7 BAR

***These are compatible with Evo 7/8/9 and Evo X. Please check all other fitments.
